Parameter Table

PARAMETERS	SPECIFICATION
Frequency Range	10.0～40.0MHz
Supply Voltage	1.8V、2.5V、2.8V、3.3V
Supply Current	10MHz≤F0＜15MHz: 1.5mA max 15MHz≤F0＜26MHz: 2.0mA max 26MHz≤F0≤40MHz: 2.5mA max
Frequency Tolerance	±0.5ppm、±1.0ppm、±2.0ppm
Frequency Stability	Vs Temperature (ref. to +25℃)	±1.5~ ±2.5ppm
	Vs Supply voltage change (±5%)	±0.2ppm
	Vs Load change (±10%)	±0.2ppm
	Vs Aging (1^st Year ,25±2℃)	±1.0ppm
Operating Temp. Range	-30～+85℃
Storage Temp. Range	-55～+125℃
Voltage Control Range	±5.0ppm min
Output Waveform:	Clipped Sine Wave
Output Level:	0.8 Vp-p Min (Clipped Sine Wave)
Output Load	10KΩ//10pF
Symmetry	45% ~ 55% typ. at 0.5×Vdc
Start-up Time	2.0mS max
Phase Noise	-115 dBc/Hz max @100Hz offset
	-135 dBc/Hz max @1KHz offset
	-148 dBc/Hz max @10KHz offset

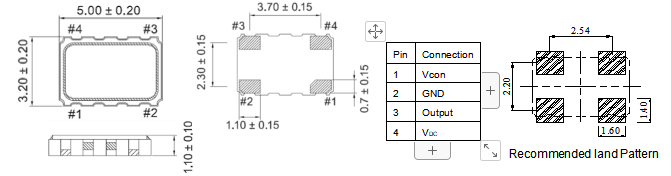

PART NUMBER GUIDE e.g. FVTO26.000M2.8SM5-1.0/2.5C (*SM5=5.0×3.2 SMD TYPE)

	VCTCXO	Frequency	Supply voltage	Package	Frequency Tolerance	Frequency Stability	Operating Temp.
F	VTO	26.000MHz	2.8V	SM5	+/-1.0ppm	+/-2.5ppm	C

Note:items marked with * are required
