DSB221SDN

Frequency:

9.6MHz – 52MHz

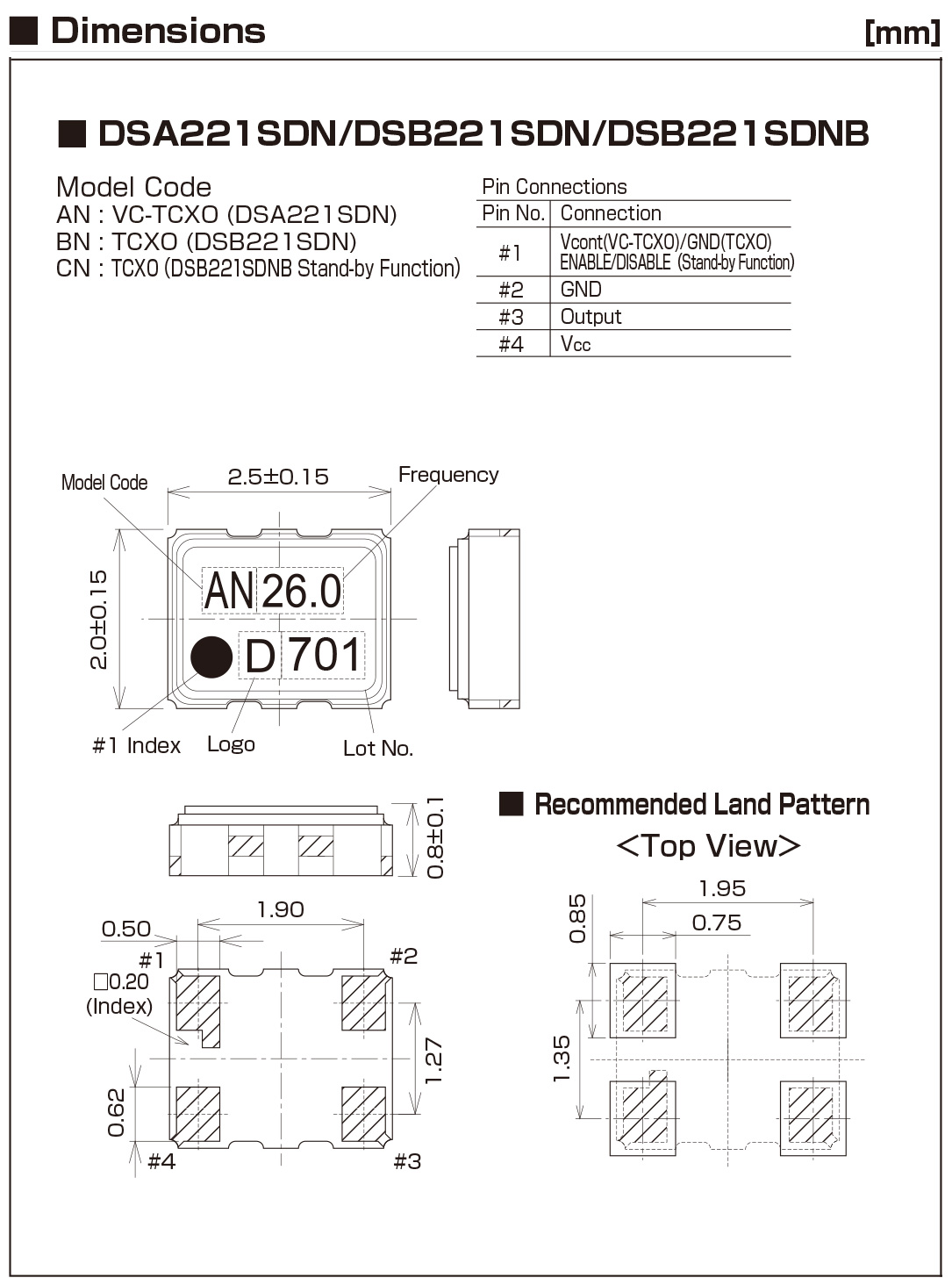

Size:

2.5×2.0×0.9mm

Temperature:

-30℃~+85℃

-40℃~+85℃

Stability:

±0.5ppm,±2.5ppm,

Parameter Table

Type		DSB221SDN (TCXO)
Frequency Range		9.6 to 52MHz
Standard Frequency		26MHz /32MHz / 38.4MHz / 40MHz / 48MHz
Supply Voltage Range		+1.68 to +3.5V
Supply Voltage (VCC)		+1.8V / +2.6V / +2.8V / +3.0V / +3.3V
Current Consumption		+1.5mA max. (f≦26MHz) / +2.0mA max. (26<f≦52MHz)
Stand-by Current		–
(＃1 pin “L” Level)
Output Level		0.8Vp-p min. (f≦52MHz) (Clipped Sinewave/DC-coupled)
Output Load		10kΩ//10pF
Frequency Stability	Tolerance	±1.5×10-6 max. (After 2 reflows)
	vs. Temperature	±0.5×10-6,±2.5×10-6 max. / -30 to +85℃
		±0.5×10-6,±2.5×10-6 max. / -40 to +85℃ (Option)
	vs. Supply Voltage	±0.2×10-6 max. (VCC ±5%)
	vs. Load Variation	±0.2×10-6 max. (10kΩ//10pF±10%)
	vs. Aging	±1.0×10-6 max. / year
Frequency Control	Control Sensitivity	–
	Response Slope	–
Start up Time		2.0ms max.
Output Enable Time		–
Phase Noise		[f≦26MHz]	[26MHz<f≦40MHz]	[40MHz<f≦52MHz]
Offset 100Hz		-115dBc/Hz	-110dBc/Hz	-105dBc/Hz
Offset 1kHz		-130dBc/Hz	-130dBc/Hz	-125dBc/Hz
Offset 10kHz		-150dBc/Hz	-150dBc/Hz	-145dBc/Hz
Offset 100kHz		-155dBc/Hz	-155dBc/Hz	-150dBc/Hz
Packing Unit (1)		3000pcs./reel (Φ180)
